Anycubic Photon Mono X (4K) - High Speed Resin 3D Printer

shipping_imageShips Out Within 24 Hours

Customer Service text IconIncludes Excellent After-Sales Support

Anycubic Photon Mono X Front
Anycubic Photon Mono X
Anycubic Photon Mono X side
Anycubic Photon Mono X back
Anycubic Photon Mono X without case
Anycubic Photon Mono X top

Anycubic Photon Mono X (4K) - High Speed Resin 3D Printer

shipping_imageShips Out Within 24 Hours

Customer Service text IconIncludes Excellent After-Sales Support

Sale price
$589.00
Regular price
$589.00
Quantity must be 1 or more

Product Descprition

This cutting-edge 3D printer in the Photon Mono family offers large build volume and fast print speeds. If you have projects that have substantial volume output, then this easy-to-use machine offers the build platform you need. Photon Workshop software included with purchase helps you get started and is easy to use.

Technical Specifications


8.9" 4K Monochrome LCD
4K resolution at 8.9 inch size, allows larger prints, more detail and accuracy.
Fast Printing Speed
Making printing speed 3X faster than the Photon.
Large Build Volume
A large build area for your 3D-printed creations :192mm(L)*120mm(W)*245mm(H)
Anycubic APP Remote Control
Remote control of print operations
  • System : ANYCUBIC Photon Mono X
  • Operation : 3.5 inch Touch Screen
  • Software : ANYCUBIC Photon workshop
  • Connectivity : USB
  • Technology: LCD-based SLA
  • Light-source: high-quality filament(wavelength 405nm)
  • XY Res.: 0.050mm 3840*2400(4K)
  • Z Axis Res.: 0.01mm
  • Layer Res.: 0.01-0.15mm
  • Printing Speed: MAX 60mm/h
  • Rated Power: 120W
  • Printer Size : 270mm(L)*290mm(W)*475mm(H)
  • Build Volume: 192mm(L)*120mm(W)*245mm(H)
  • Material: 405nm UV Resin
  • Net Weight: ~10.75kg
Highlights

Safe Design

Printer will be immediately shut off if the top cover has been removed. This feature is turned off by default

Anycubic Slicer Software

New features are added to the software. Supports up to 8x anti-aliasing: Fast slicing, Hollowing, Split Model, Text Paste

Fast Printing Speed

The time of exposure is as low as 1.5-2 seconds, and the max print speed is 60mm/h, making printing speed 3X faster than the Photon.

High Performance Z-axis

The Z-axis is supported by dual linear rails,stepper motor and clearance nut combination which dramatically improves stability while in motion and reduces the risk of layer shifting.

New Matrix UV Light Source

High quality quartz lamp bead and new matrix design for uniform UV light energy. 4K monochrome LCD delivers high-quality prints

Anycubic APP Remote Control

Remote control of print operations,monitor printing progress,adjust the print settings

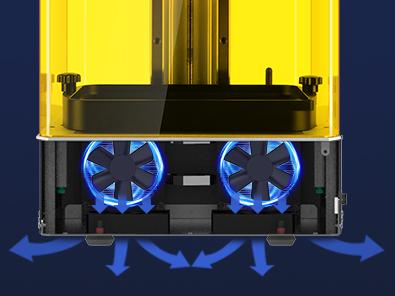

UV Cooling System

Cooling device for stable printing performance and longer service life.

Large Build Volume

A large build area for your 3D-printed creations :192mm(L)*120mm(W)*245mm(H)

8.9″ 4K Monochrome LCD

Monochrome screens can last several thousand hours. Monochrome screens allow for very short layer exposure times for faster print times.

Parts List
part_image
User Manual
part_image
SD-Card
part_image
Tool set
part_image
SD-Card Reader
part_image
Scraper
part_image
Resin Vat
part_image
Platform
part_image
Power Cord
part_image
Service Card
part_image
Wifi Antenna
part_image
Glove
